Made on Our Equipment

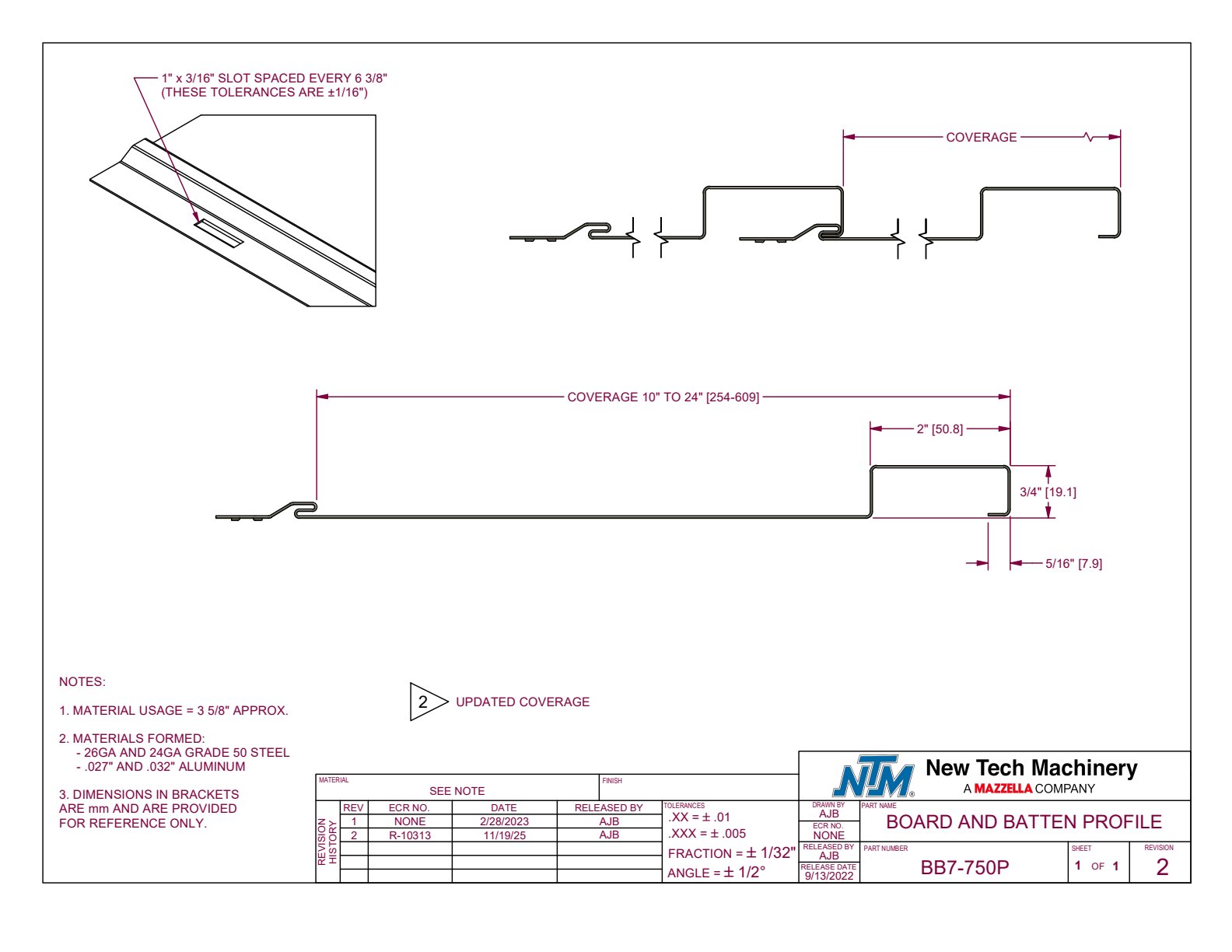

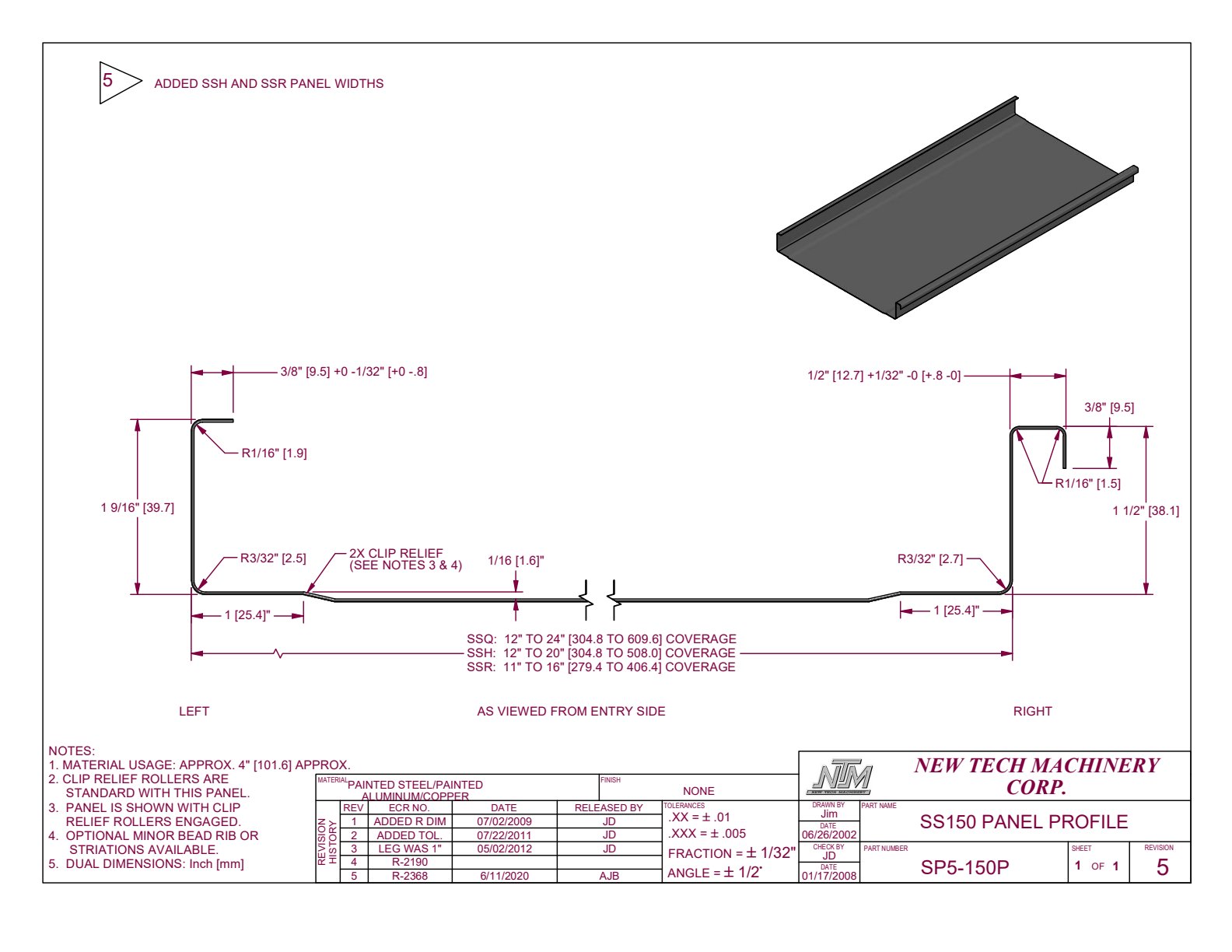

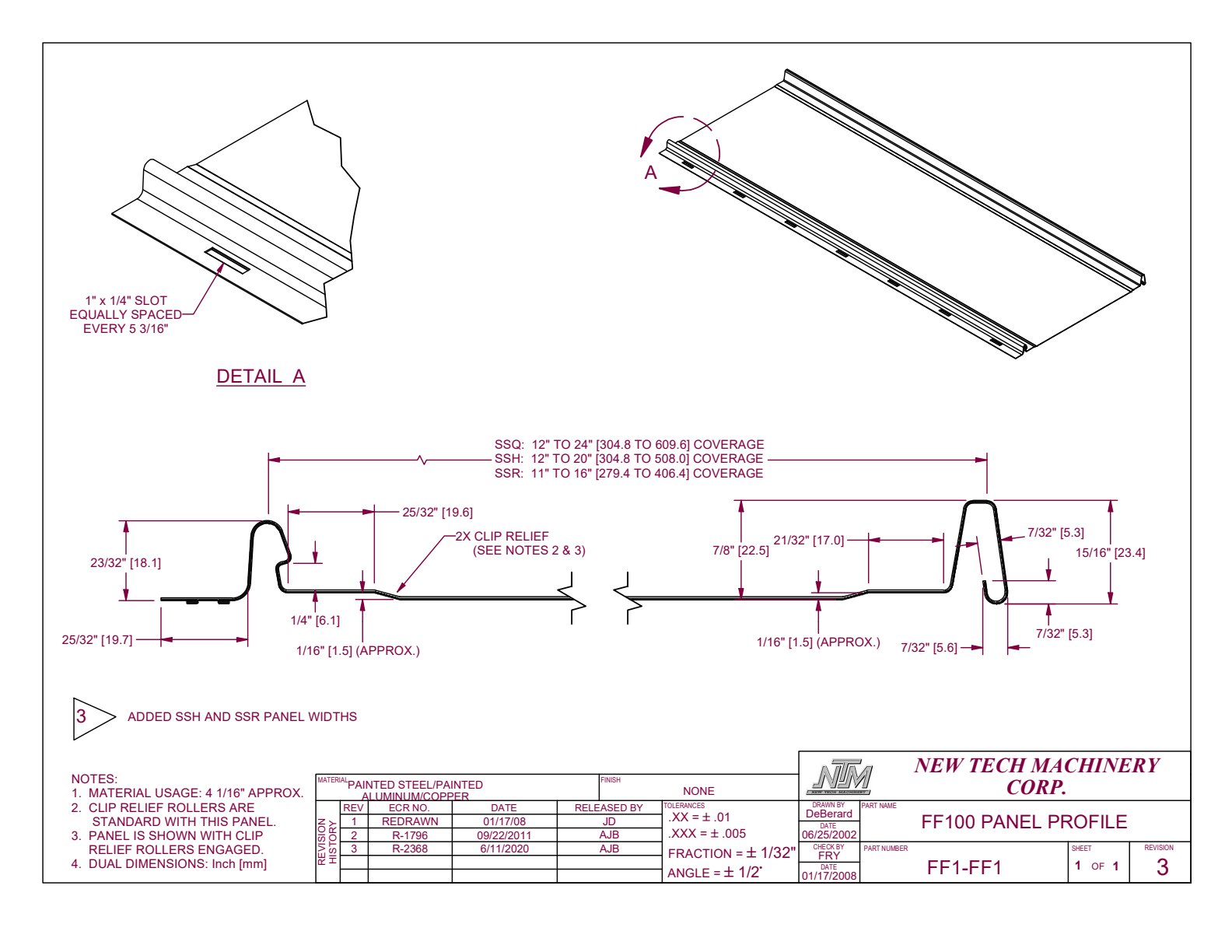

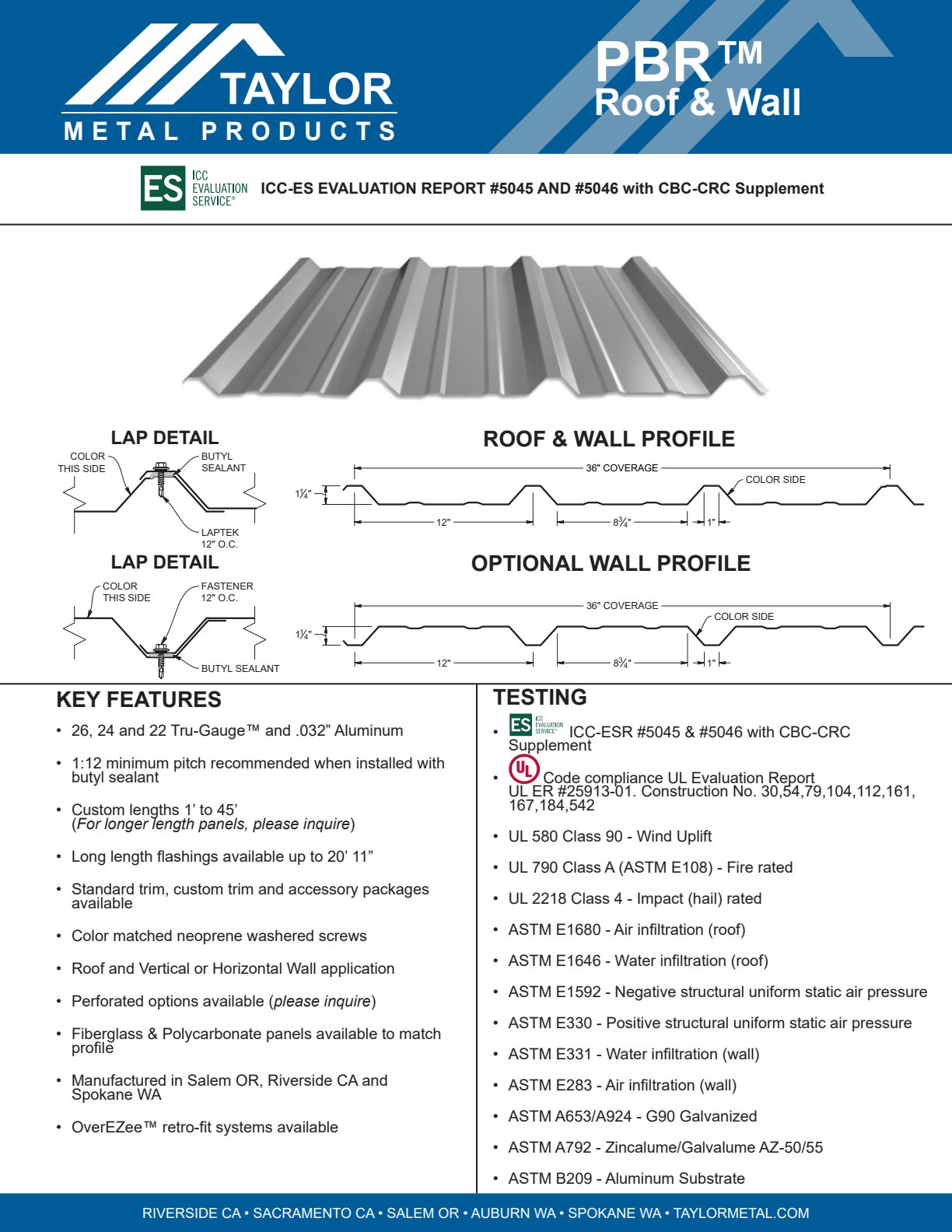

We run five panel profiles regularly — two standing-seam (MS-150 and Snap Lock), two exposed-fastener panels (Tuff-Rib and PBR), and a vertical Board & Batten siding profile. Standing-seam panels are roll-formed on-site at the jobsite for any-length runs without seams. Tuff-Rib and PBR are run in the shop. We can source other profiles if your project calls for something we don't run.
Panel Profiles
Have specs from another manufacturer or need a profile we don't run regularly? We can source or match most common profiles. Send us drawings and we'll quote it.
Send us your specs →Standard & Custom Trim
Standard trim profiles in 24 and 26 ga (we'll go 20–30 ga if needed) — color-matched to every panel system we run. For custom flashings, send us a drawing and we'll bend it to your dimensions, hems, pitch, and stretch.
Standard hemmed drip-edge profiles for any roof pitch. Color-matched to the panel.
Closed and vented ridge profiles, including Versa Vent ridge venting integration.
Endwall and rake trim cut to your roof pitch — straight, hemmed, and color-matched.
Custom chimney caps, step flashings, and pipe boots bent in-house to project specs.
Door pan flashings, window head trim, and casing — all bent to drawing.
Anything we don't list — send the drawing on the trim order form. Include hems, stretch, pitch, and quantity.
A flashing diagram with all standard trim profiles is available — request a copy with your quote.
Profile Spec Sheet
